VetKISS R-Plates



These cut-to-length plates are available in two options, straight and shaped. The shaped plate features a T-shape and an L-shape on opposite ends allowing the appropriate choice of plate geometry while minimizing inventory. Symmetrical design allows for use as a left- or right-handed plate.

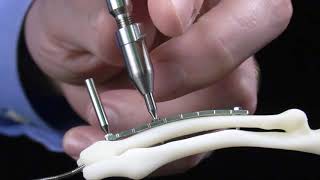

VetKISS R-plates (rigid plates) should be used in most long bone fracture scenarios and are not designed to be contoured from side to side. When contouring R-plates, use two forceps and direct the bend between screw holes to avoid potential screw hole damage.

Implant quality 316LVM, stainless steel

  • Specifications
  • Learn
  • FAQs
  • You Might Also Like


Product Specifications

Part No. Plate Shape Screw Diameter Thickness Width x Length
Part No. Plate Shape: Straight Screw Diameter (mm): 1.0 mm0.039 in Thickness (mm): 1.0 mm0.039 in Width x Length: 2.6 mm x 50 mm0.079 in
Part No. Plate Shape: TL Screw Diameter (mm): 1.0 mm0.039 in Thickness (mm): 1.0 mm0.039 in Width x Length: 2.6 mm x 50 mm0.079 in
Part No. Plate Shape: Straight Screw Diameter (mm): 1.4 mm0.039 in Thickness (mm): 1.2 mm0.039 in Width x Length: 3.0 mm x 73 mm0.118 in
Part No. Plate Shape: TL Screw Diameter (mm): 1.4 mm0.039 in Thickness (mm): 1.2 mm0.039 in Width x Length: 3.0 mm x 75 mm0.118 in
Part No. Plate Shape: Straight Screw Diameter (mm): 1.6 mm0.039 in Thickness (mm): 1.5 mm0.039 in Width x Length: 3.0 mm x 83 mm0.118 in
Part No. Plate Shape: TL Screw Diameter (mm): 1.6 mm0.039 in Thickness (mm): 1.5 mm0.039 in Width x Length: 3.0 mm x 85 mm0.118 in
